Vis-U-Etch Cupric Chloride Etcher Controller
Oxford V.U.E., Inc.
11711 Clark St., Ste 108
Arcadia, CA 91006
USA
ph.(626) 256-6557
fax(626) 256-6567
www.oxfordvue.com
Note: This is only a partial list of common parts. If you don't see the part you need listed here contact Oxford V.U.E. or your local distributor for assistance.

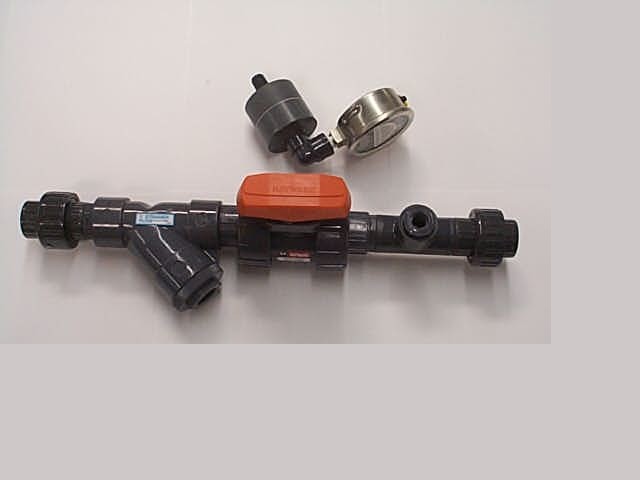

| PN:5025 w/ Gauge PN:5026 w/o Gauge Final Filter Etch input assm. Complete. (Vis-U-Etch 5, VUE-Ferric) |
 |

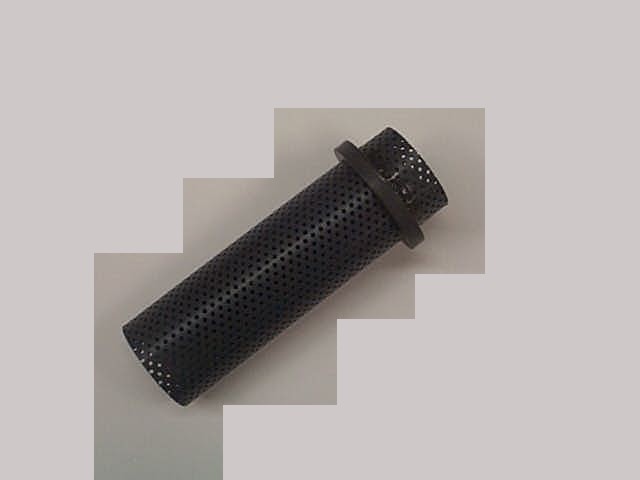

| PN:1007 Wye Strainer Element * Replacement PCV filter for 3/4" wye stainers. (Vis-U-Etch 5, VUE-Ferric) |
 |

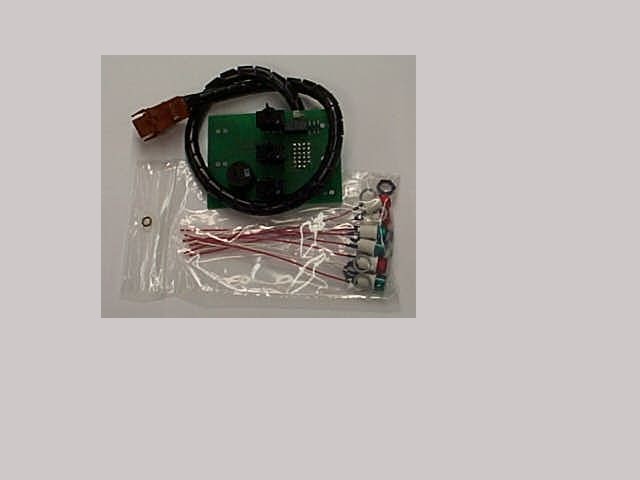

| PN:5002 Front Panel Switch Assm. PCB, Switches and Indicator lamps. (Vis-U-Etch 5, VUE-Ferric) |
 |

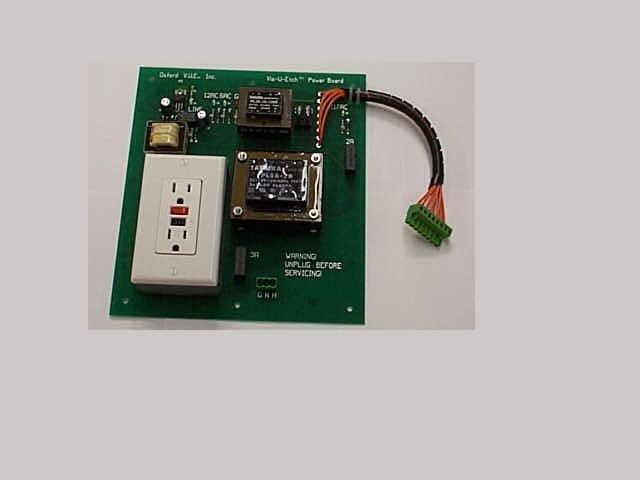

| PN:5003 Power Supply. Power Supply PCB Assm. (Vis-U-Etch 5, VUE-Ferric) |
 |

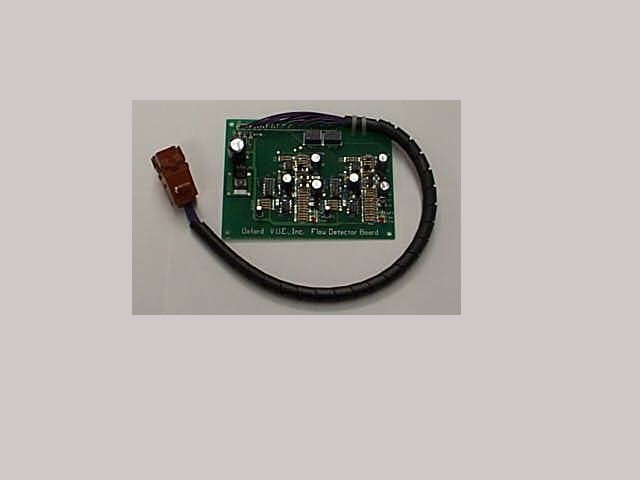

| PN:5004 Flow Detector. Flow Detector PCB Assm. (Vis-U-Etch 5, VUE-Ferric) |
 |

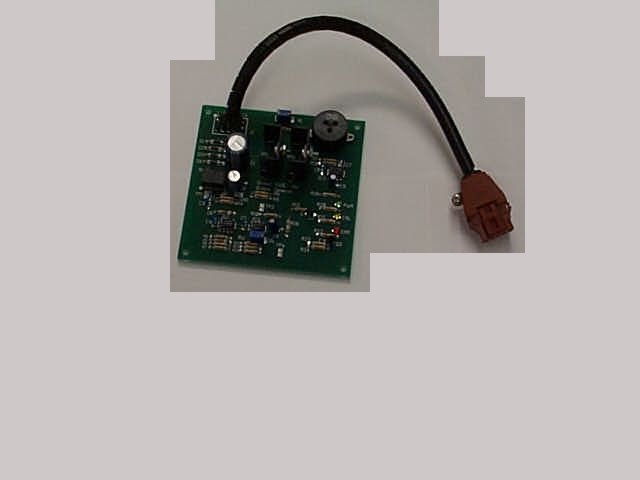

| PN:5005 Bubble Detector. Bubble Detector PCB Assm. (Vis-U-Etch 5) |
 |

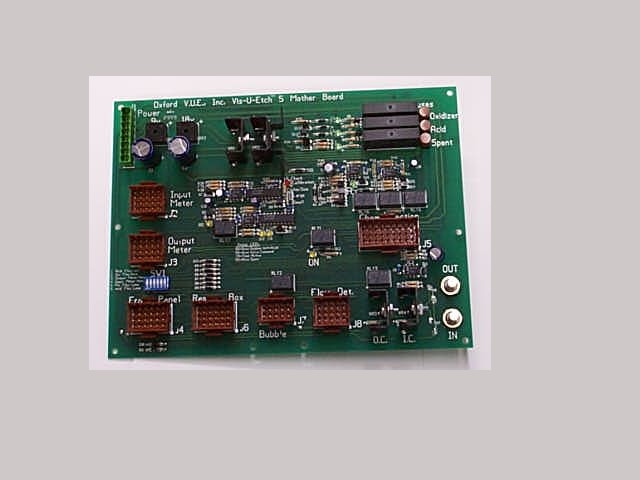

| PN:5006 Mother Board. Mother Board PCB Assm. (Vis-U-Etch 5) |
 |

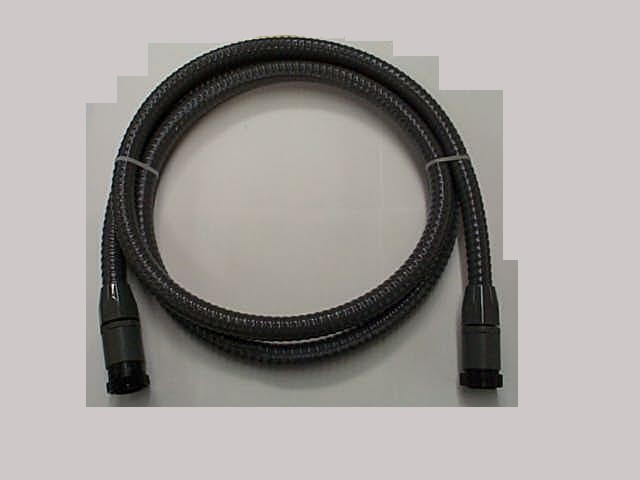

| PN:5007 Main Harness. Wire harness between electronic section and chemical section. (Vis-U-Etch 5, VUE-Ferric) |
 |

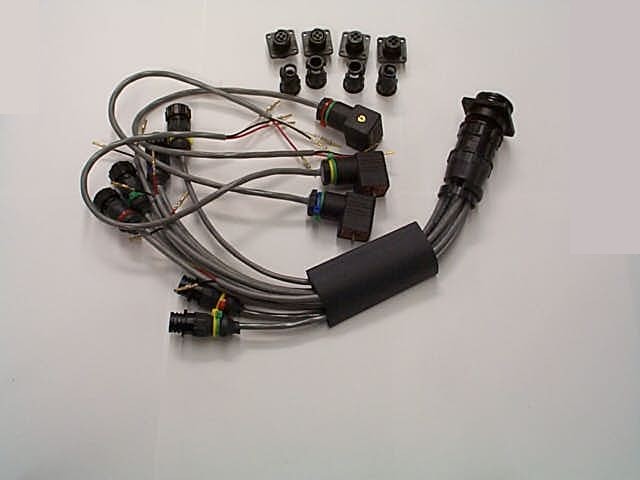

| PN:5008 Chem. Section Harness. Wire harness inside chemical section. (Vis-U-Etch 5) |
 |

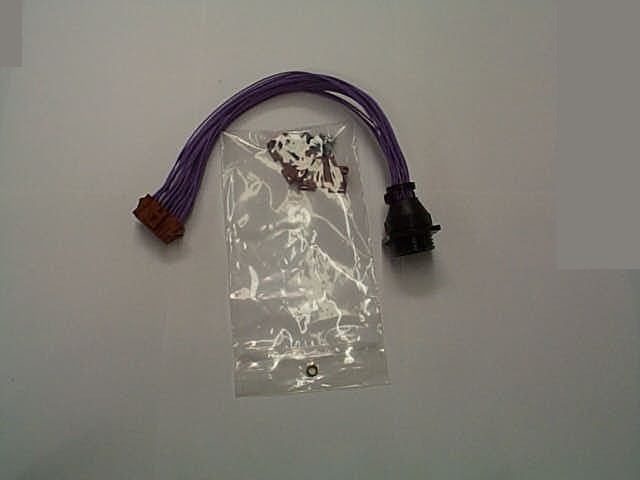

| PN:5009 Electronic Section Main Harness. Wire harness inside electronic section. (Vis-U-Etch 5, VUE-Ferric) |
 |

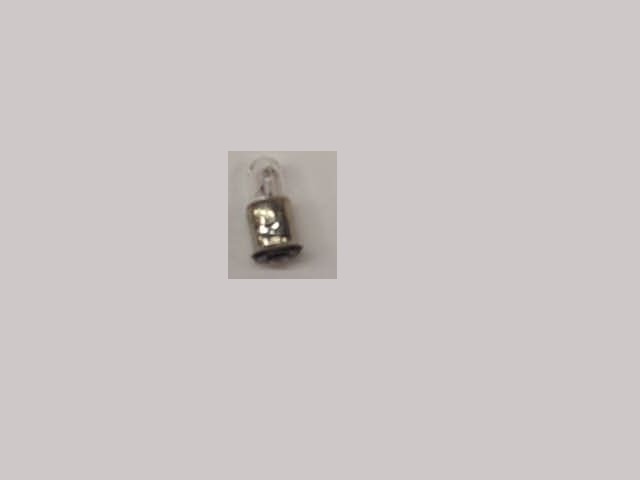

| PN:5011 ML382 Lamp * Lamp used on front panel and remote box. (Vis-U-Etch 5, VUE-Ferric) |
 |

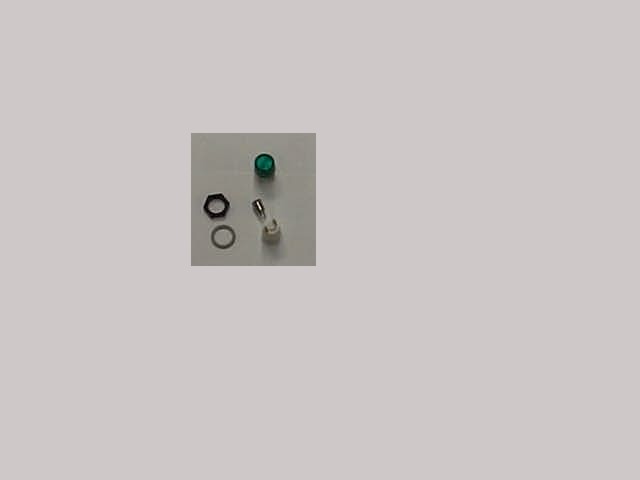

| PN:5012 Lamp Holder. Lamp holder used on front panel and remote box. Specify color when ordering. (Vis-U-Etch 5, VUE-Ferric) |
 |

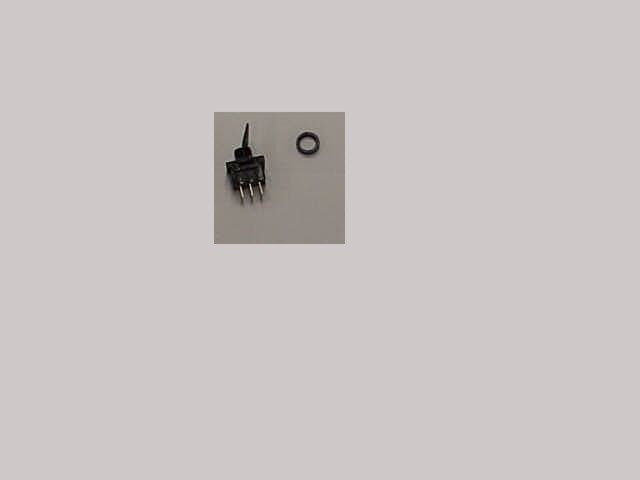

| PN:5014 Toggle Switch. Switch used on front panel. (Vis-U-Etch 5, VUE-Ferric) |
 |
| PN:5027 Float/Filter Assm. Ball valve, wye stainer float assm. for acid or oxidizer. (Vis-U-Etch 5, VUE-Ferric) |
 |

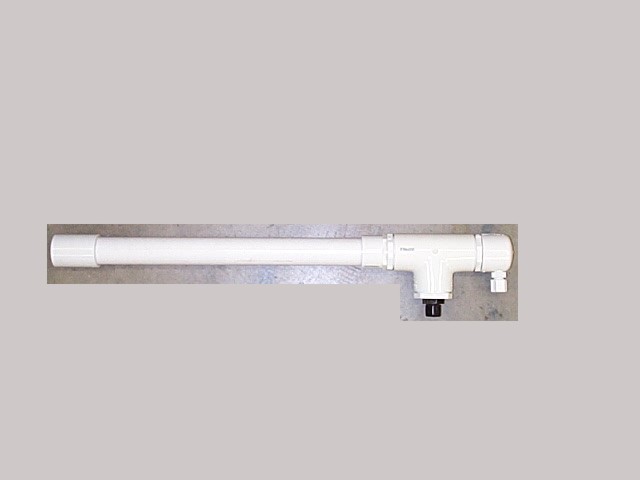

| PN:5028 Spent Float Assm. Float assm. used at spent tank. (Vis-U-Etch 5, VUE-Ferric) |
 |

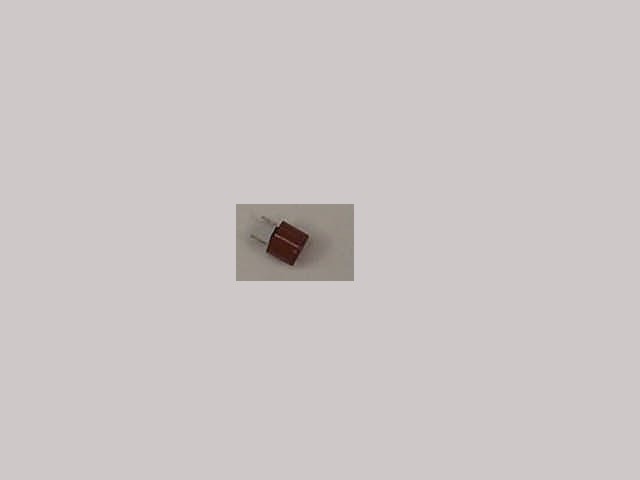

| PN:5031 1 Amp. 250V. Fuse * Valve fuse on mother board. Style TR5 (Vis-U-Etch 5, VUE-Ferric) |
 |

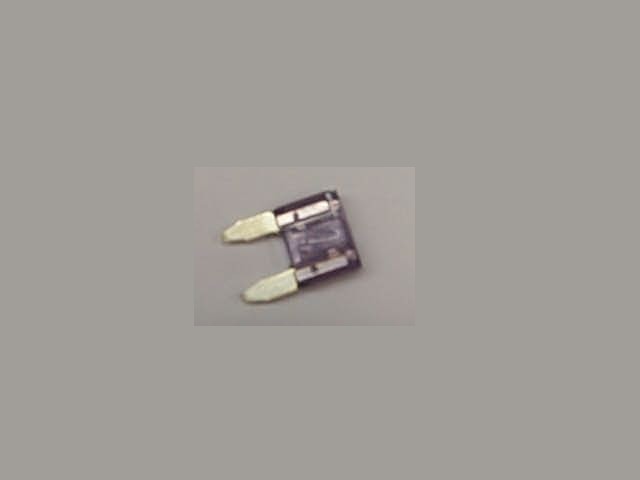

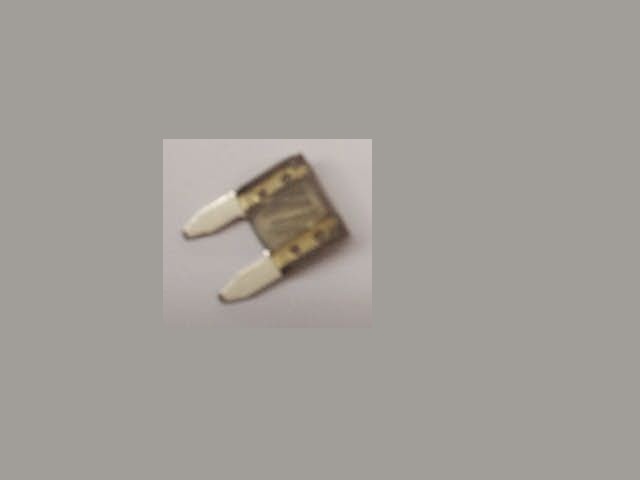

| PN:5033 2 Amp. 32V. Fuse * Fuse used on power board. Style ATM (Vis-U-Etch 5, VUE-Ferric) |
 |
| PN:5034 3 Amp. 32V. Fuse * Fuse used on power board. Style ATM (Vis-U-Etch 5, VUE-Ferric) |
 |

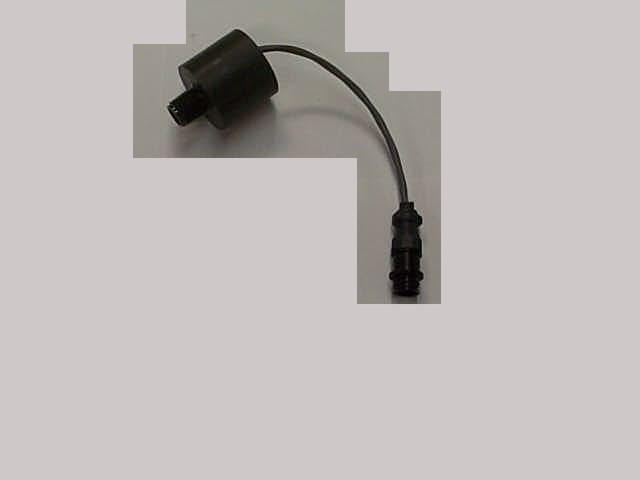

| PN:5035 Pressure Switch * Pressure switch in chemical section. (Vis-U-Etch 5, VUE-Ferric) PN:5035-U has union connection (not shown) for VUE's with SN's after 5125. |
 |

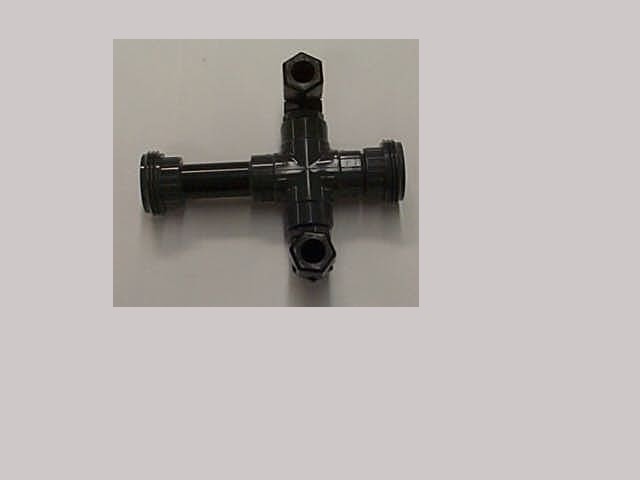

| PN:5040 Injector Assm. Specify size when ordering (#9,#11,#14,#17 or #21) (Vis-U-Etch 5, VUE-Ferric) |
 |

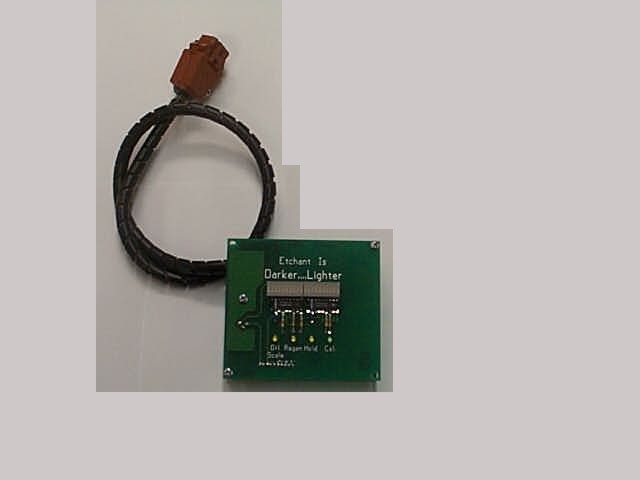

| PN:5060 Meter Multi-set point electronic meter. (Vis-U-Etch 5) |
 |

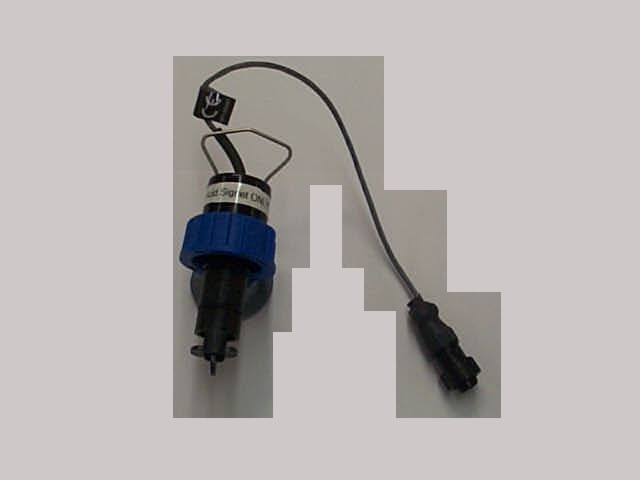

| PN:5309 Acid Flow Detector Signet X-Rotor low flow sensor with PVDF rotor pin. (Vis-U-Etch 5, VUE-Ferric) |
 |

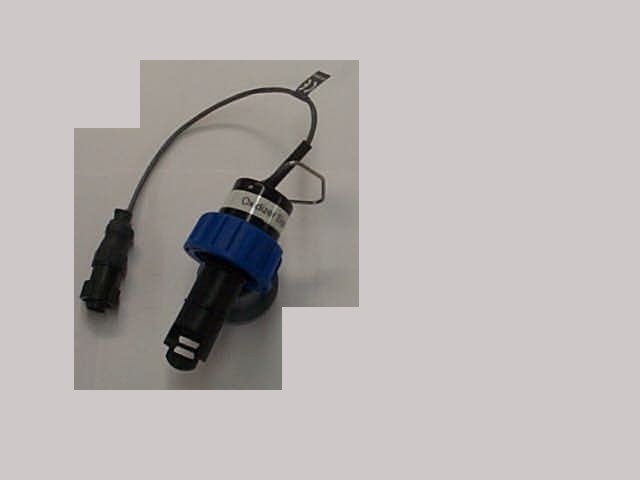

| PN:5310 Oxidizer Flow Detector Signet X-Rotor low flow sensor with titanium rotor pin. (Vis-U-Etch 5, VUE-Ferric) |
 |

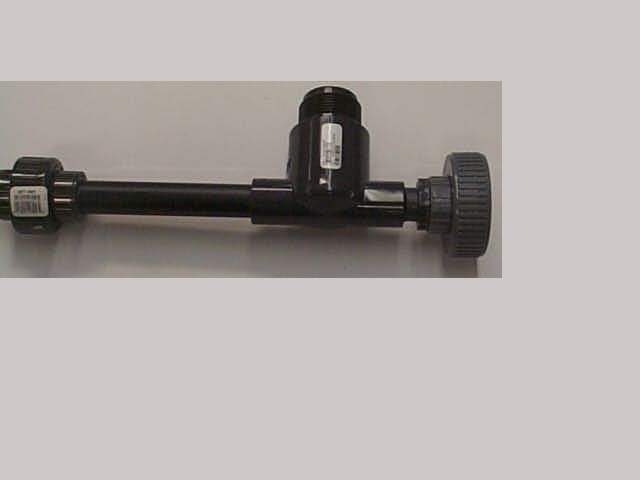

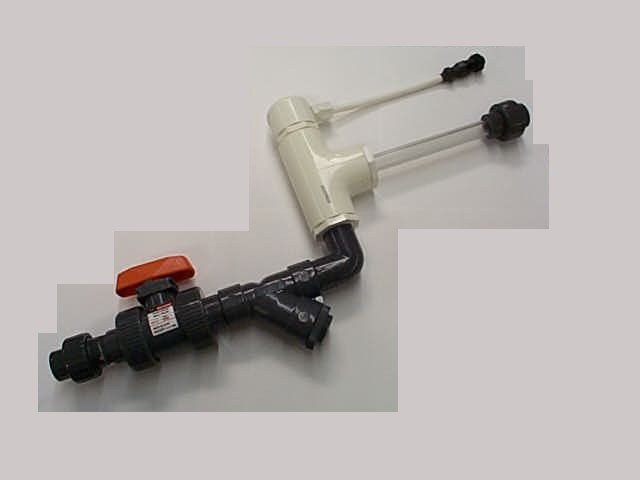

| PN:5311 Flow Restrictor Flow sensor instalation tee assm. (Vis-U-Etch 5, VUE-Ferric) When ordering specify size/type. |
 |

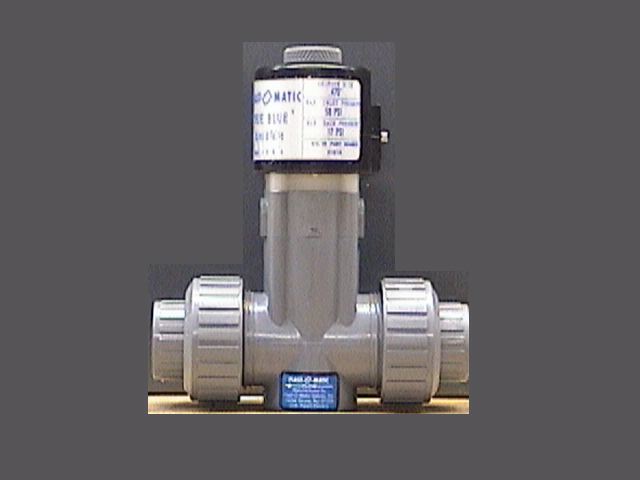

| PN:X1219 3/4" Solenoid Valve * Used as acid, oxidizer and spent valve. Has Aflas seals. (Vis-U-Etch 5, VUE-Ferric) Seal kit P/N:SKX1219 |
 |

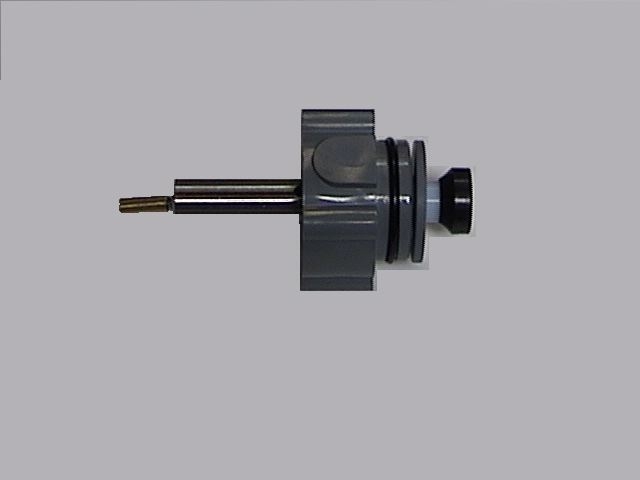

| PN:SKX1219 Aflas core for 3/4" Solenoid Valve * Used as acid, oxidizer and spent valve. (Vis-U-Etch 5, VUE-Ferric) |
 |

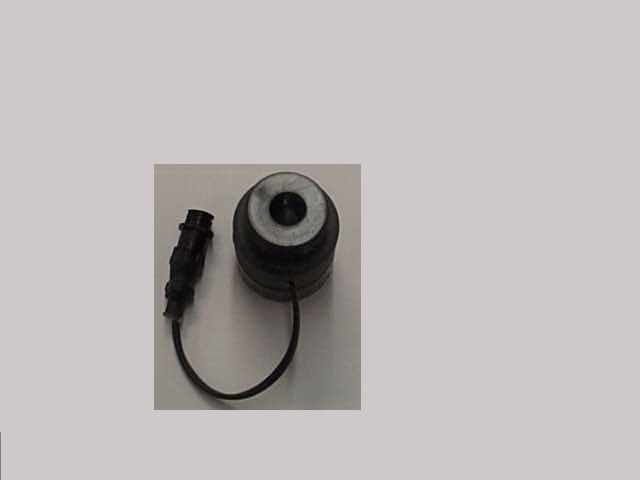

| PN:5381 Light Cell * The VUE5 uses 3 light cells (Input, Output, and Bubble detector) (Vis-U-Etch 5, VUE-Ferric). |
 |
To order parts please fax your purchase order to (626) 256-6567
* Recommended spare part.
