PIC16F877 based Microcontroller

This powerful little microcontroller was designed for Oxford V.U.E.'s use in our products, but is now available to the public. Hobbyist and OEM inquiries welcome.
Contact Dave Flynn at Oxford V.U.E., Inc. +1(626) 256-6557

Features

High-contrast 20 char x 4 line LCD display with LED backlight
RJ-45 for 10 base-T ethernet connection
DB-9S for RS-232 connection
Real Time Clock with battery backup
Fast RISC processor up to 10 MIPs
44 Pin PLCC Socket for PIC16F877 or PIC18F452
32-256 KB serial EEPROM for long term data retention
512 KB Static RAM
10 Status LEDs
7 SMD Buttons including reset
8 10bit Analog Inputs
Lots of Digital I/O

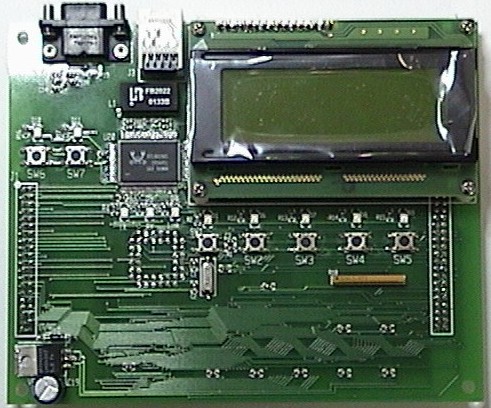

Front

Back

The schematic is in six pages grouped by function.
CPU_page.pdf
NIC_page.pdf
Connectors_page.pdf
IO_page.pdf
Mem_page.pdf
Serial_page.pdf

The_Brain_Parts_List.pdf

brain_demo.sitx

Visit Microchip's web site for more info on their microcontrollers.

This StuffIt file contains the open source macro assembler I built so I could develop software and program "The Brain" using only my PowerMac G4/400. MacroPIC.sit It was written in RealBasic 4.0 so it's slow (about 3000 lines per second), but is a simple one step 'drop .asm file here' to use program.
A 10 base-T connected programmer is available. Yes, I use one of these micro's as my programmer.
